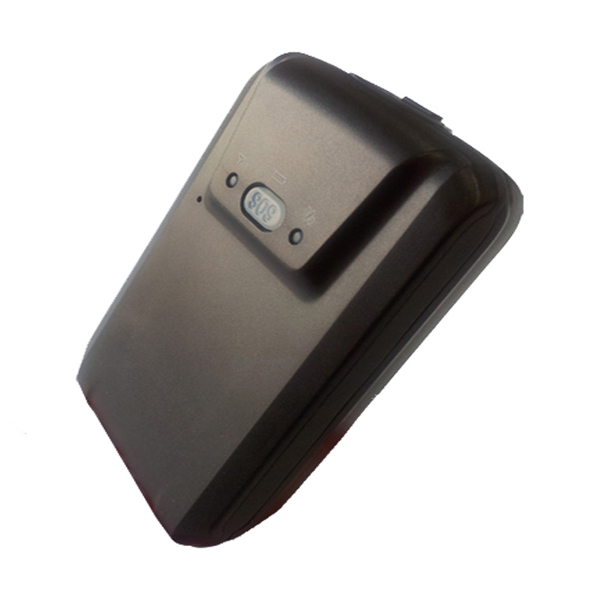

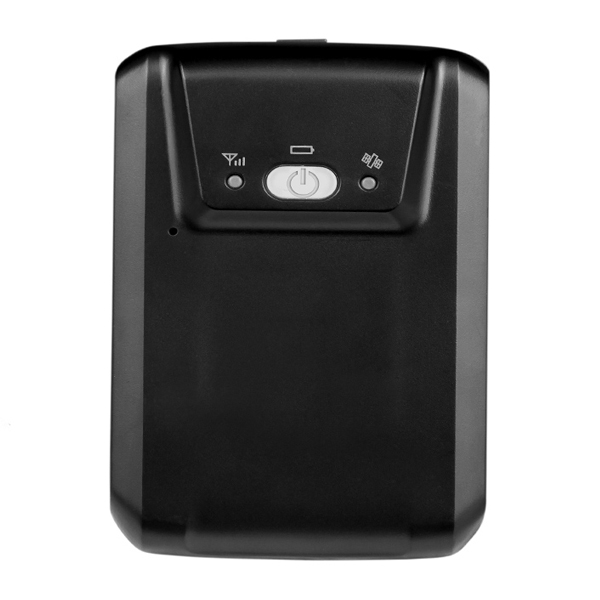

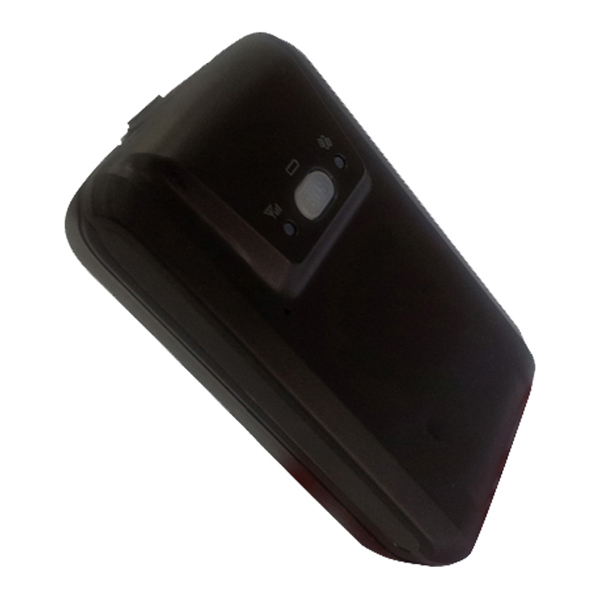

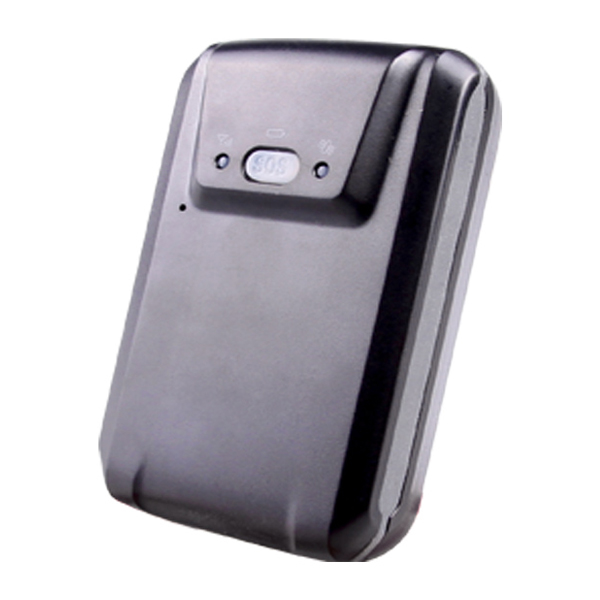

magnetic GPS tracker
Magnetic GPS tracker is extremely easy and flexible to install using strong magnetic design. IP65 protection allows it to operate even in extreme working environment. With large built-in battery, the device is suitable for asset tracking, vehicle tracking, cargo tracking, race motorcycle tracking, etc.

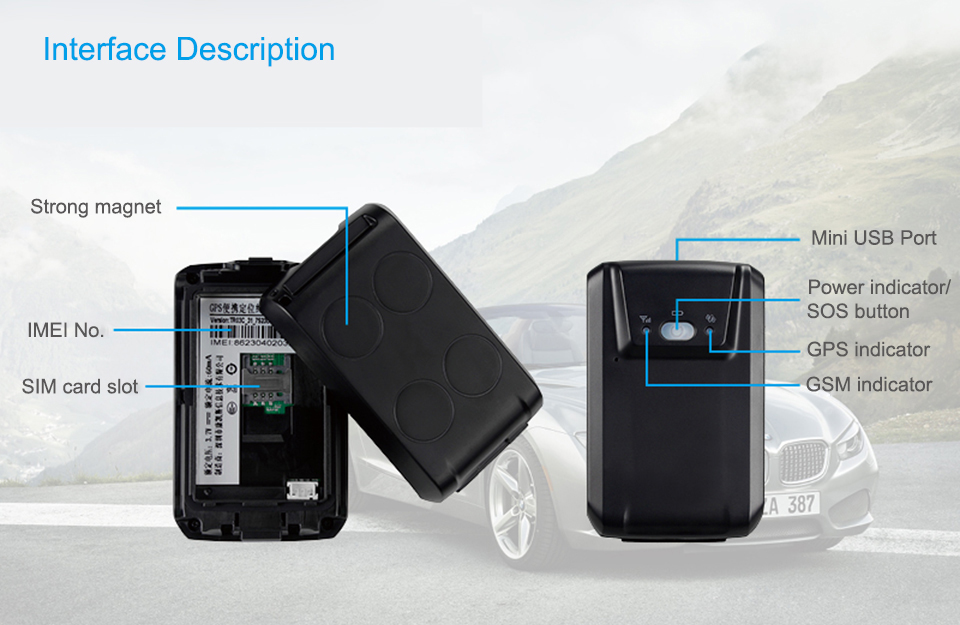

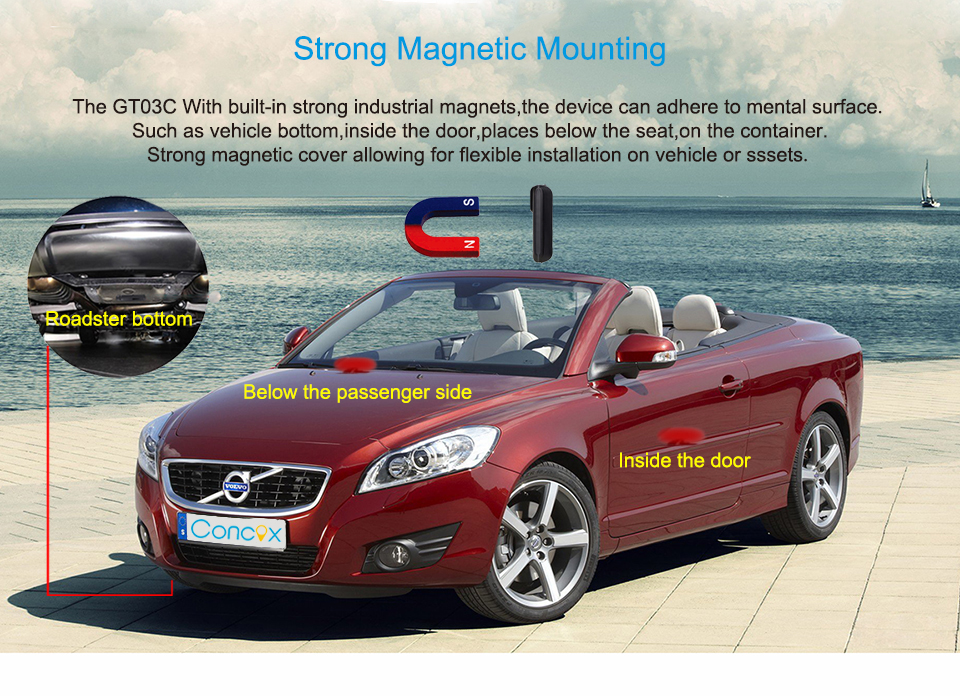

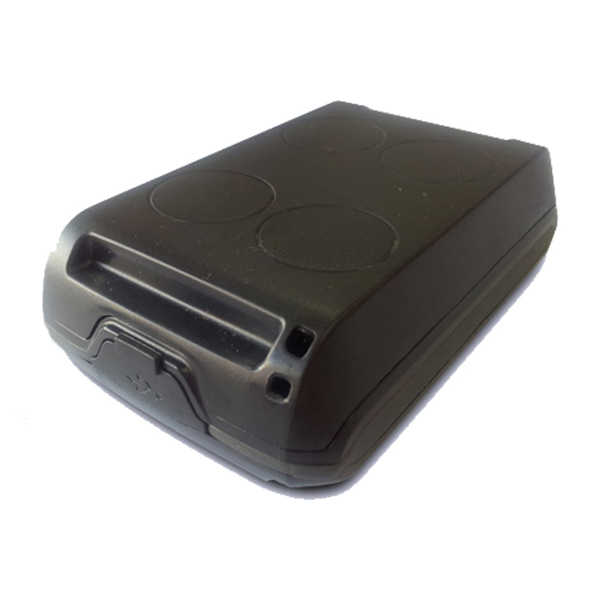

Magnetic Installation

Strong magnet for flexible and reliable installation

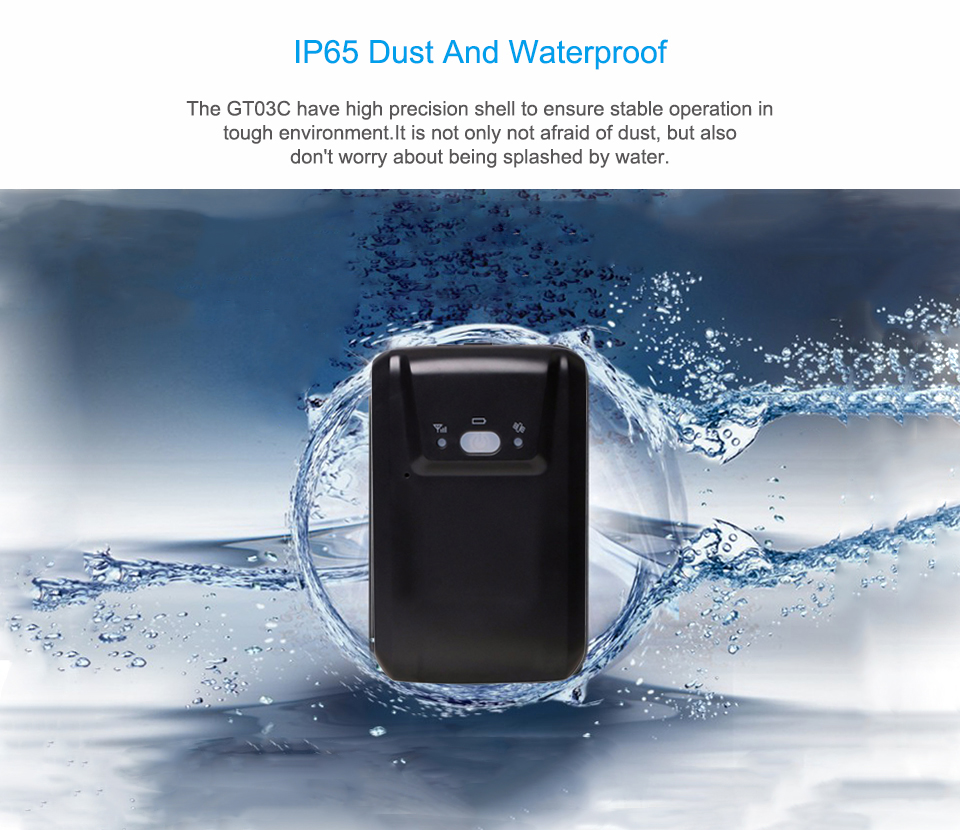

IP65 Waterproof

Suitable for extreme working environment


Voice monitoring

Use your phone to dial to the device then you may hear the live voice in the vehicle.


Vibration Alert

When the device sensor detects any vibration, the device will send alarm to your mobile and then dial it.



Restrict vehicle’s movement within a district by setting up the geo-fence. The device will send message to the authorized number automatically when it’s IN/OUT of the fence.

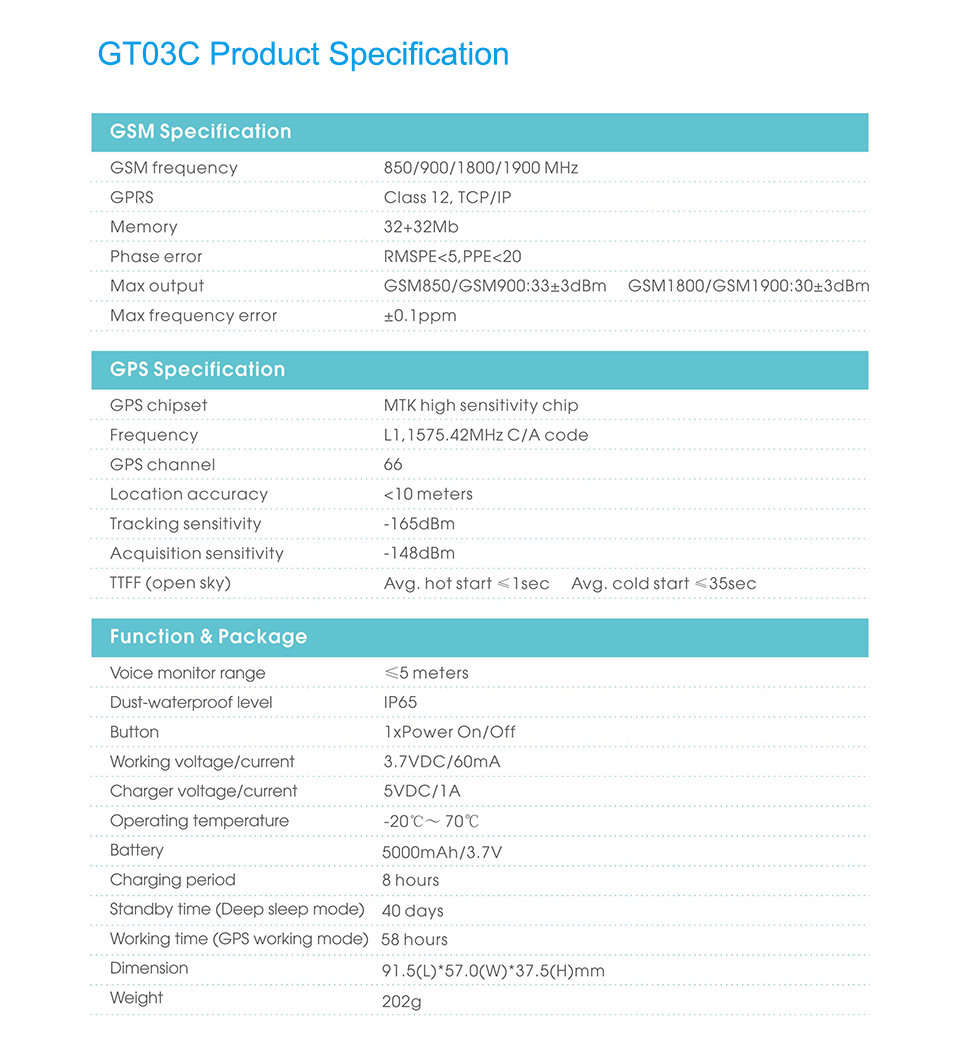

Hardware Specification
GSM Specification
Communication System GSM
GSM Frequency 850/9001800/1900MHz
GPRS Class 12,TCP/IP
Memory 64 MB
Phase Error RMSPE<5,PPE<20
Max Output GSM850/GSM900:33±3db
Max Frequency Error ±0.1ppm
Sensitivity Class ⅡRBER2%(-10dBm)
GPS Specification
GPS Chip MTK high sensitivity chip
Frequency L1,1575.42MHz C/A code
Channels 66
Location Accuracy <10 meters
Tracking Sensitivity -165dBm
Acquisition Sensitivity —148dBm
Positioning Time Hot-start:≤2 sec(open sky)
Cold-start:≤35 sec(open sky)
Main Specification
Monitoring Scope ≤5M
Button 1 Power on/off key
GSM/GPS Antenna Built-in
LED Indicator Light GPS(Blue),GSM(Green)
Battery 2500mAh/3.7V & 5000mAh/3.7V Industrial-grade lithium-polymer battery
Standby Time 20    days (Deep sleep mode)
30 hours(GPS working mode)
Voltage/Current 3.7VDC/60mA
Protection Grade IP65
Charging Time 4 hours
Color Black
Dimensions 91.5(L)*57.0(W)*24(H)mm
Weight 100g
Operating Temperature -20℃ — +7 0℃
Warranty 1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models. We will bear maintenance cost during warranty.

Delivery 1. Sample and mini order will be delivered within 2-3 working days after the receipt of payment.
2. All products have been well packed before shipping.
3.For order over 500pcs or customized order, lead time will be 4-6weeks after the receipt of payment. Please contact our sales to make sure the current inventory.
