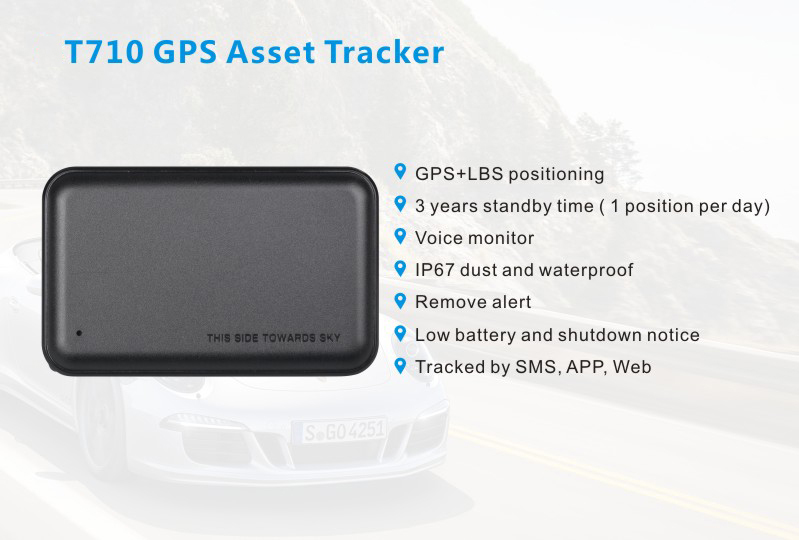

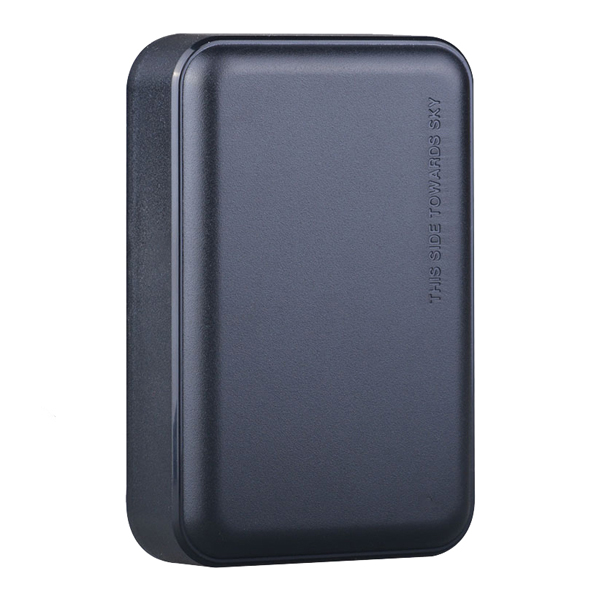

T710 Asset GPS Tracker
The advanced features, rugged construction and industry-leading battery life make the T710 the new state of the art in GPS vehicle tracking. Using GPS, LBS positioning, T710 gives detailed reports and tell you exactly where a vehicle has been, where it's headed and how fast it's traveling. With 10000mAh battery and IPX5 water proof to maximize performance, it puts you in total control of individual vehicles or fleets. Strong magnet facilitates the installation while built-in MIC realize voice monitoring.

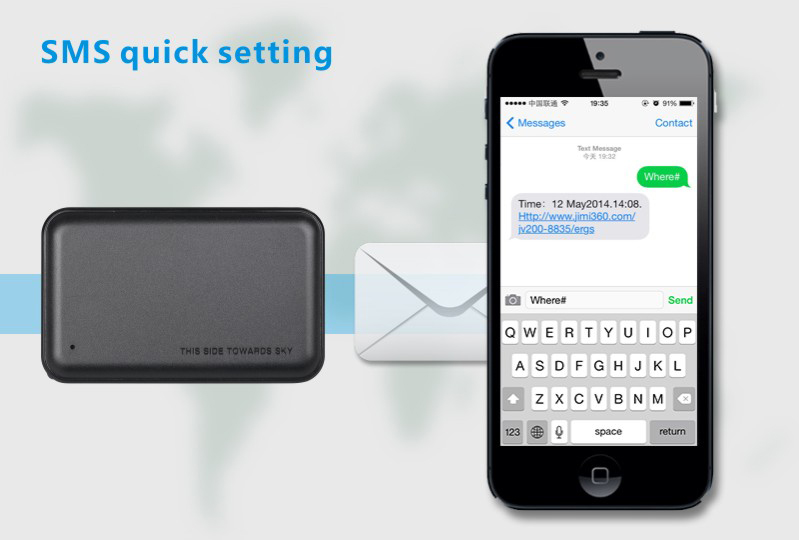

Listen to the surroundings by sending SMS command

Intelligent power management

Reduce ineffecient power consumption when the device stays idle

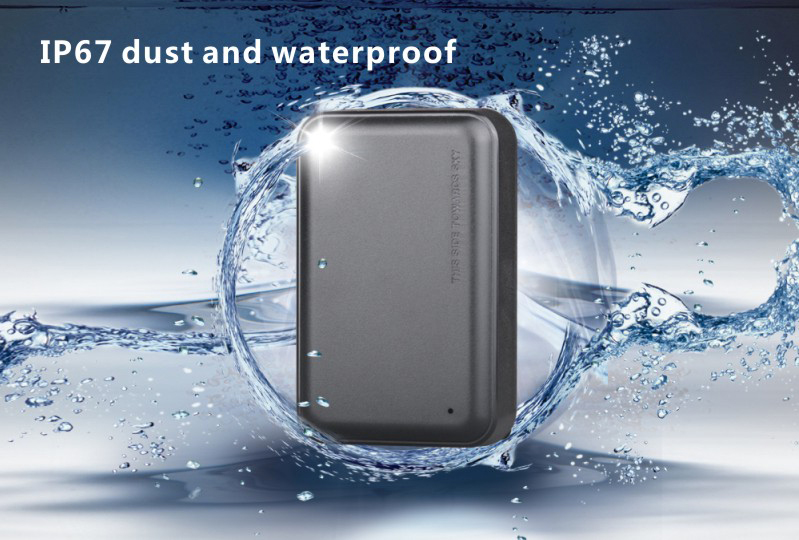

IPX5 water proof

Water-resistant case to ensure stable operation in tough environment

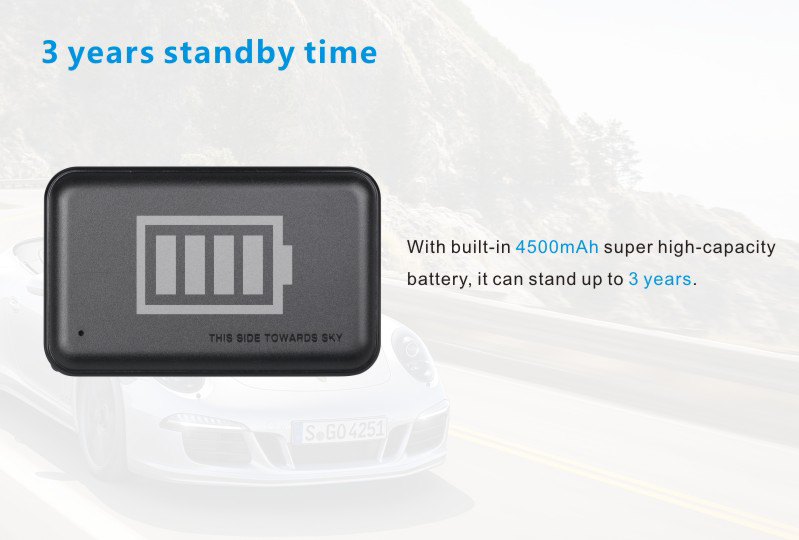

10000mAn battery

High capacity Li-ion battery ensuring sufficient power supply

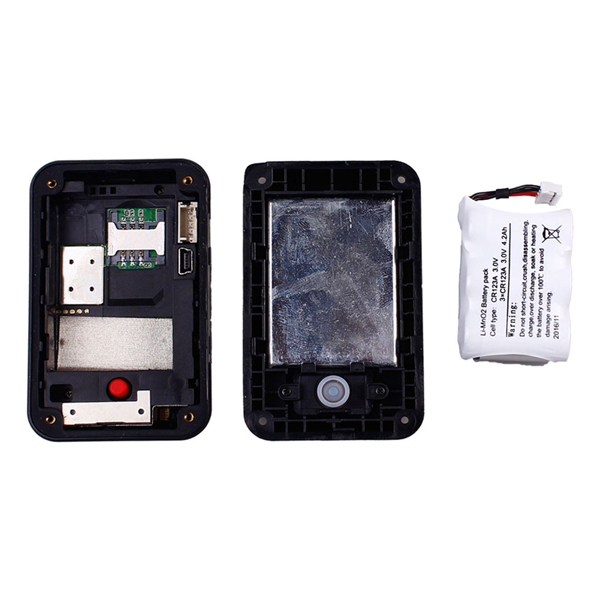

Tamper alert

Once the device is disassembled, you will get informed immediately

Strong magnet

Strong magnetic cover allowing for flexible mouting on vehicles or assets

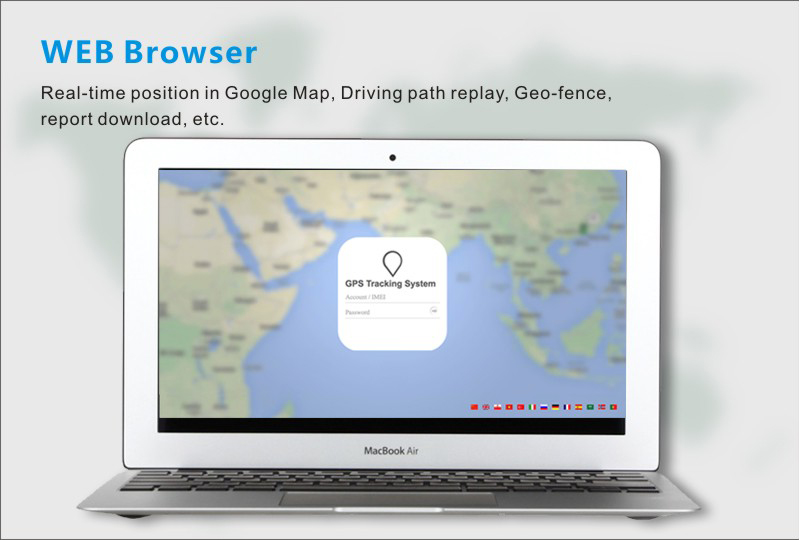

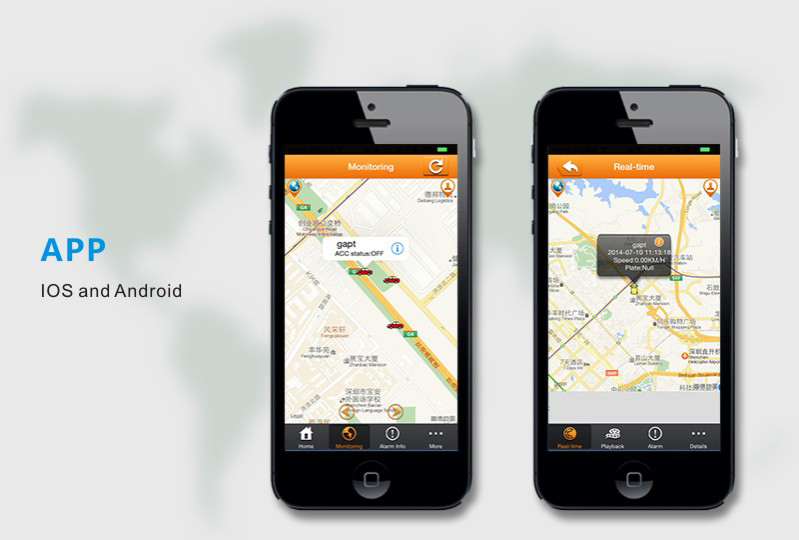

Tracked by: SMS, APP, Web

Report location in real time through different interfaces

GSM Specification
GSM frequency 850/900/1800/1900MHz
GPRS Class 12, TCP/IP
Memory 32 + 32 Mb
Phsase error RMSPE<5,PPE<20
Max output GSM850/GSM900:33±3dBm
Max frequency error ±0.1ppm
Receive sensitivity Class II RBER2%(-102dBm)
GPS Specification
Chipset High sensitivity GPS chips
Frequency GPS L1, 1575.42MHz
Channel 66
Location accuracy <10 meters
Tracking sensitivity -165dBm
Acquisition sensitivity -148dBm
TTFF (open sky) Avg. hot start ≤1sec
Avg. cold start ≤32sec
Function & Package

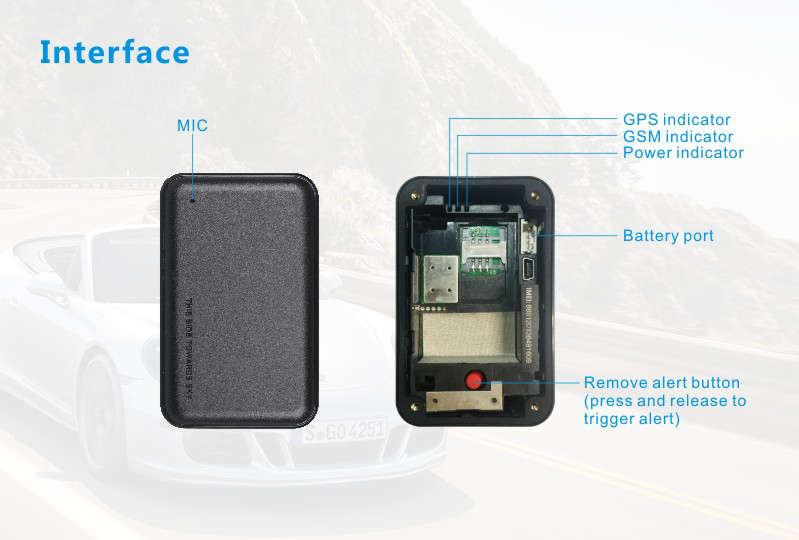

Switch 1 for base falling detection; 1 for inner disassembly detection; 1 for power control
Button 1x power
GSM/GPS antenna Built-in quad band GSM antenna, GPS ceramic antenna
LED indicator Red: working status; Green (4): battery
Working voltage/current 3.7V/60mA
Tracking mode 30 days( drive for 2 hours per day)
Operating temperature -20℃ ~+70 ℃
Battery 10000mAh/3.7V industrial grade lithium polymer battery
Charger 5 VDC / 2A
Charging hour 8 hours
Device weight 285g
Device dimension 108.0 x 61.0x 30.0mm
Warranty 1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models. We will bear maintenance cost during warranty.

Delivery 1. Sample and mini order will be delivered within 2-3 working days after the receipt of payment.
2. All products have been well packed before shipping.
3.For order over 500pcs or customized order, lead time will be 4-6weeks after the receipt of payment. Please contact our sales to make sure the current inventory.
