C10

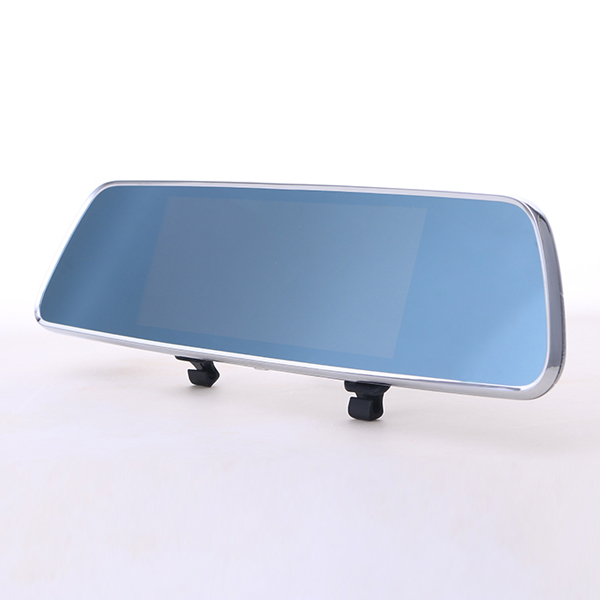

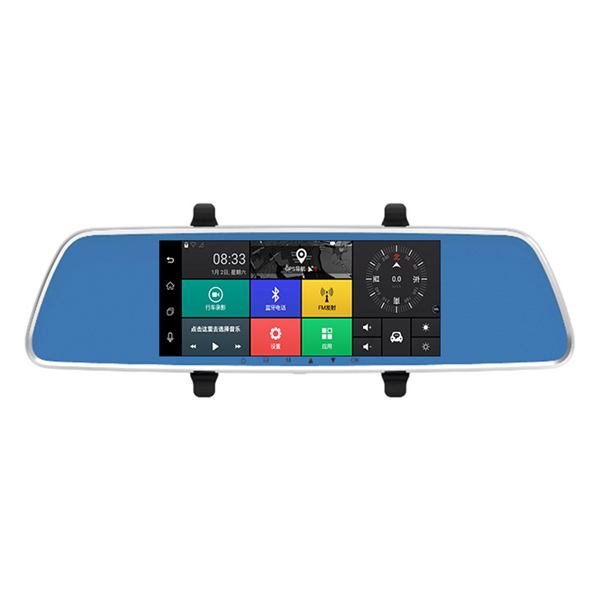

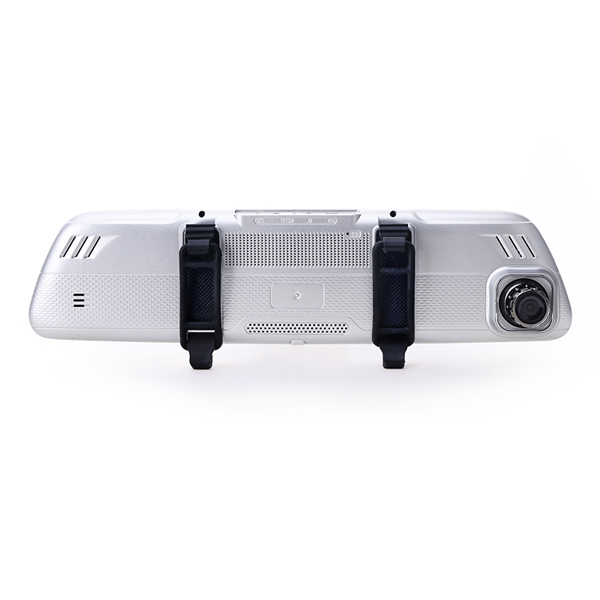

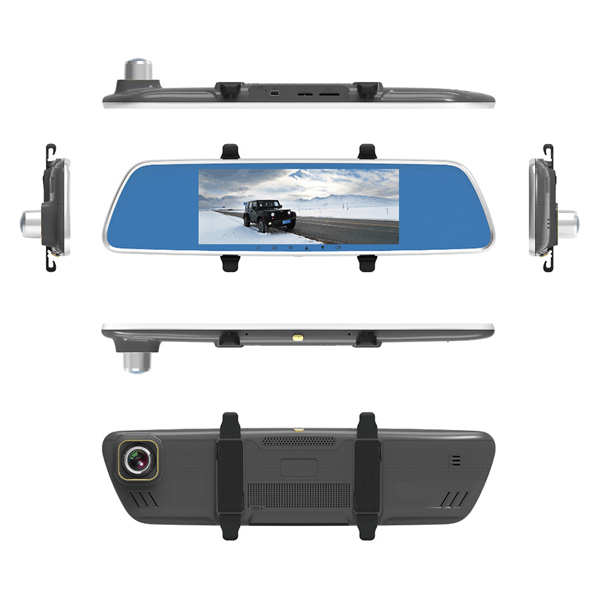

Android Rearview Mirror can be applied to any private cars. Google Map navigation with 3G/4G network will be your best friend on the road. GPS+AGPS Dual Positioning System, features of 1080P front camera and D1 back camera make sure every detail to be recorded and to provide full evidence in conflict. In addition, the Android 5.1 operating system provides possibilities for easy integration of new softwares, to make the device to be smart while you are driving.

Description Specification

Brief Introduction

Android 5.1 system

MTK Quad-Core

6.86 Inch 16:9, MIPIport;IPS display; Brightness450nit;

Forward+ Reverse camera

Built-in WiFi

live streaming surveillance

3G/4G for Google Map navigation

FM transmitter

Bluetooth Hands-free Phone

Reversing Video Input

TF Card Memory, Max. 128G

CPU		MTK Quad-Core 1.3GHz
Screen	Display	6.86 inch 16:9, MIPIport;IPS display; Brightness450nit;
	Resolution	HD 480*1280
Storage	Flash ROM	16GB EMMC
	RAM	1GB LPDDR3
GPS		External High Sensitive Ceramic Antenna
SIM Card		Micro SIM Card
E-dog		Support for fixed monitoring flows (optional); Real-time data update
Frequency		4G:TDD/FDD-LTE 3G: TD-SCDMA/WCDMA 2G: GPRS/GSM
Bluetooth		BT4.0;Voice communication;
Multi-Media		Audio(MP3, WAV);Video(WMV, AVI, ASF, MOV, MPG, 3GP, FLV, MP4,H263,H264);Picture(JPG,TIFF, PNG )
G-sensor		3 axis g-sensor,Support Cyclic Record
Parking Moniter		3 axis g-sensor
Forward Camera		NT99142;1080P;F=2.0;4-class 140º wide angle;H.264 code;Front and rear cameras double display.
Rear-view camera		OV9726; 720P; 4-class;H.264Code(digital camera); support 1S reverse
wifi		802.11 b/g/n
FM transmitter		Support
Stand-by consumption		3MAH
Wifi Hot-spot		support
INPUT/OUTPUT device	touch screen	CTS CapacitiveTouchScreens
	Loudspeacker	Built-in ribbon speaker (:8Ω/2W)
	MIC	Built-in MIC-phone noise reduction processing.
	micro-SD	support, Max to 128GB
	USB	MINI USB 2.0
Reset		support
Power Supply	VEXT Voltage External	Power supply of cigarette lighter, input 12-24v, car charger output 5V2.5A, ripple 50MV
